| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Nickel | Material2: | Copper |
|---|---|---|---|
| Usage: | Battery | Advantage: | Conductivity |
| Advantage2: | Weldability | Shape: | Customised |
| Highlight: | metal clad material,metal composite material |
||

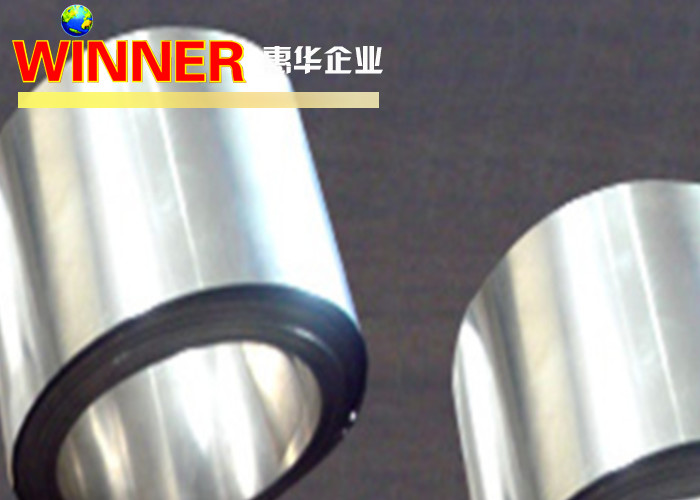

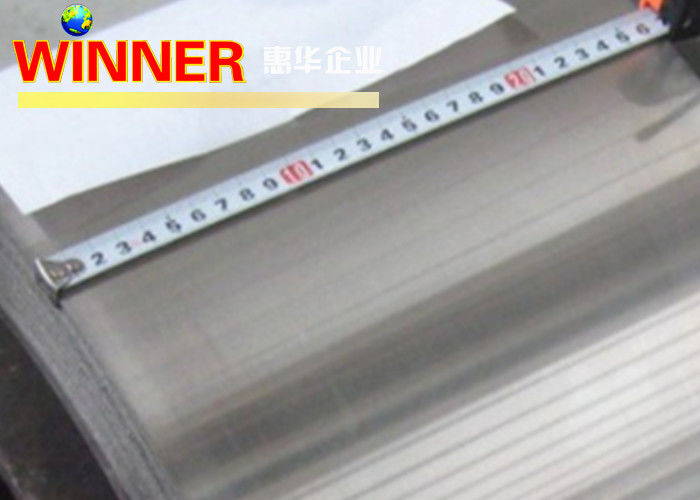

Ni Cu composite metal Ni Cu ratio 1:1 Ni Cu composite strip with small internal resistance and good welding performance
A clad material combines two or more metal strips by bonding them together. By bonding different combinations of metals, the advantages of the individual metals are combined into a composite that is tailored to your specific product needs and requirements.
When applying clad materials into batteries, high conductivity is one of the most significant advantages. Besides, these clad materials make welding easier, and are also useful for increasing the battery's performance (higher volume and smaller size) and improving productivity as well.
High conductivity and strength,good cold / hot workability and weldability.
| Parameter table | |
| Product name | Nickel copper composite metal |
| Nickel copper ratio |
Single sided 1:1 Double sided 1:1:1 |
| Material grade | N2 T2 |
| Material purity | Ni≥99.98% Cu+Ag≥99.9% |
| Product specification | Thickness 0.08-030 tolerance ± 0.015 width 1.5-100 tolerance ± 0.10 |
| Supply shape | Coil, sheet |
| Copper nickel binding force | ≥5Kgf |
The nickel-clad copper material is the patent product of Huihua. Huihua has 12-years' experience in manufacturing Nickel-clad copper materials. This kind of material can effectively reduce the possibility of the battery explosion and have lower electrical resistance than pure nickel, coupled with both excellent welding performance like nickel and good conductivity like copper.
| Components of clad materials | Thickness ratio | Specification | Product Status |
| Cu/Ni | Cu : Ni 6 : 4 |
depend on customers' requirements | depend on customers' requirements |
| Cu : Ni 5 : 5 |
It is mainly used to manufacture nickel cadmium, nickel hydrogen, lithium battery, combination battery, instrument and meter, telecommunication, electric vacuum, special bulb and other industries.
Packing Details : Carton and wooden box packaging
Delivery Details : 2-5 days
Nickel copper composite tape is to use the solderability of nickel and the excellent conductivity of copper to reduce the internal resistance of the whole battery, which not only prolongs the discharge time of the battery, but also improves the service life of the battery and saves the cost.
