| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Copper | Product Name: | Lithium Battery Aluminum Tab |
|---|---|---|---|
| Application: | Lithium-ion Battery | Usage: | Tab |
| Advantage: | Welding | Thickness: | 0.15mm |
| Highlight: | nickel battery tabs,copper battery tabs |
||

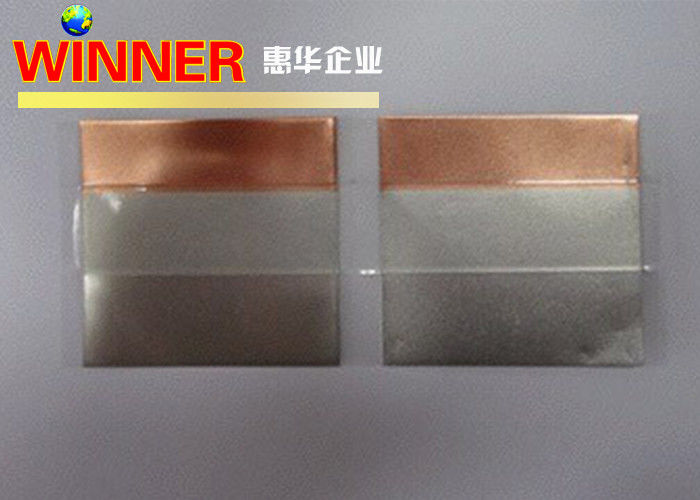

Aluminum And Copper Clad Metal Tab For Lithium - Ion Battery Free Of Additional Welding
| Specifications | |
| Material | Aluminum 99.99% |
| Lenth | 48mm |
| Width | 8mm |
| Thickness | 0.15mm |
| Max loading current | 10A |
Battery tabs play an important role in lithium-ion cell manufacturing. A typical large format lithium-ion cell uses copper foil as the anode current collector and aluminum as the cathode current collector. A ‘foil-to-tab’ weld is needed to gather all the current collector plates (foils) inside the cell and join them to a tab which exits the cell casing, allowing the cell’s energy to be transferred to an external source. There are two foil-to-tab welds in each cell, and hundreds of cells in a typical lithium-ion battery pack.

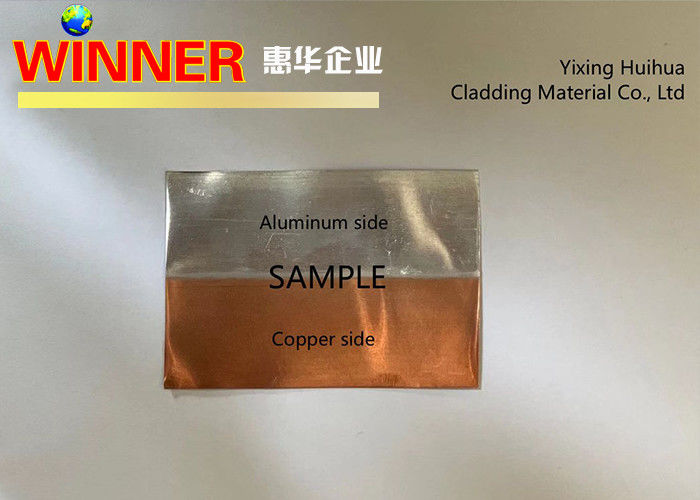

The aluminum-clad copper material tab provides a low cost and high-performance solution for li-ion battery tab joining. Nowadays, the leads or tabs from Li-ion pouch and prismatic cells are often configured with one lead of copper and the other lead of aluminum. This brings a challenge for welding copper to aluminum with the busbar. By replacing one of the leads with an aluminum-clad copper tab, the busbar joining can be applied to all aluminum to aluminum connections. This greatly simplifies the welding process.
1. No transfer welding operation, improve the yield
2. Reduce the resistance of positive ear
3. Low temperature discharge efficiency is higher than that of traditional electrode
4. Reduce heating of electric core and improve safety
5. Resistant to electrolyte corrosion and breaking.
Q: Are you trading or manufacturer ?
A: We are company,and we have our own factory
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
