| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Nickel | Usage: | Battery |
|---|---|---|---|
| Material2: | Aluminum | Advantage: | Conductivity |
| Advantage2: | Weldability | Advantage3: | Conversion Welding |
| Thickness: | 0.2mm-8mm | Al (Min): | 99% |
| Alloy: | 1050.1060.1070.1100.1350 | ||
| Highlight: | thin aluminum strips,aluminum alloy strip |
||

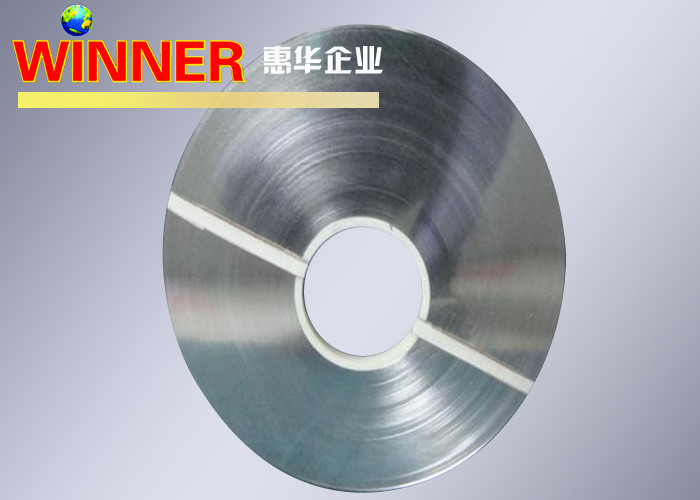

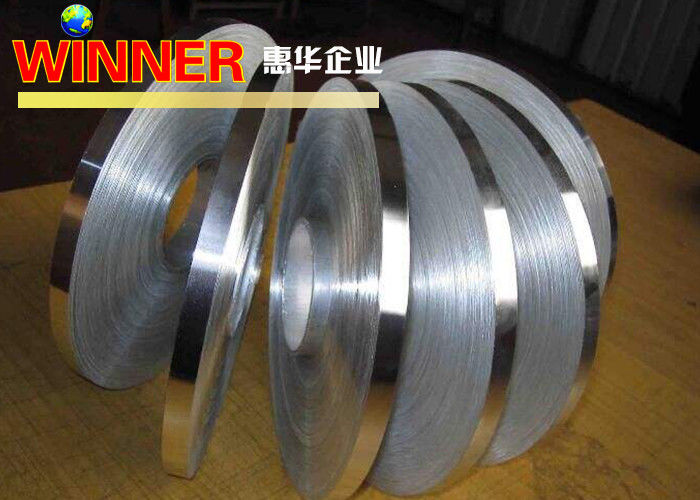

Aluminum strip and nickel aluminum strip for aluminum tube used in large capacity battery
A clad material combines two or more metal strips by bonding them together. By bonding different combinations of metals, the advantages of the individual metals are combined into a composite that is tailored to your specific product needs and requirements.
When applying clad materials into batteries, high conductivity is one of the most significant advantages. Besides, these clad materials make welding easier, and are also useful for increasing the battery's performance (higher volume and smaller size) and improving productivity as well.
The raw material of aluminum strip is pure aluminum or aluminum alloy cast rolled roll, hot rolled roll, rolled by the cold rolling mill for different thickness, width of the sheet aluminum roll, and then according to the use, by the longitudinal shear longitudinal cut into different width of the aluminum strip.
Al-Ni clad materials have good conductivity and processability. They can be directly welded to lithium-ion battery aluminum casings and terminals.
| Parameter table | |
| Product name | Aluminum metal strip / aluminum nickel composite strip |
| Material purity | Nine99.98% / Al-99.6% |
| Product specification | Thickness 0.05-0.4 tolerance ± 0.015, width 1.5-100 tolerance ± 0.10 |
| Supply status | MY2Y |
| Supply shape | Rolled, flaky and shaped stamping parts |
| 180 degree bending | M ≥ 7 times, Y2 ≥ 4 times, y ≥ 2 times |
| Bonding strength of nickel and aluminum | ≥4Kgf |
| purpose | For bottom connection of aluminum shell of lithium battery, anode conversion of polymer battery, special welding of solar cell, etc |
| Components of clad materials | Thickness ratio | Specification | Product Status |
| Al/Ni | Al : Ni 1 : 2 |
depend on customers' requirements | depend on customers' requirements |
1. With the solderability of nickel strip
2. Good processability
3.Conversion welding
4.Reduce the internal resistance of battery
Supply Ability:1000000 Kilogram/Kilograms per Month
Packaging Details,Export standard, wooden pallet or as your requirements
Plate is placed to the iron or wooden pallet , wrapped by water-proof kraft paper perfectly , then strong fixed by GI iron narrow belt
We also can make the package as your requirements.
Q: Are you trading or manufacturer ?
A: We are company,and we have our own factory
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
