| Place of Origin: | jiangsu,wuxi |
|---|---|
| Brand Name: | Huihua |
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Nickel | Usage: | Battery |
|---|---|---|---|
| Material2: | Aluminum | Advantage: | Conductivity |
| Advantage2: | Weldability | Advantage3: | Conversion Welding |
| Width: | 10mm-1000mm | ||
| Highlight: | 10mm Width Aluminium Metal Strip,Al 99.6% Aluminium Metal Strip,Easy Welding Ni Al Composite Strip |
||

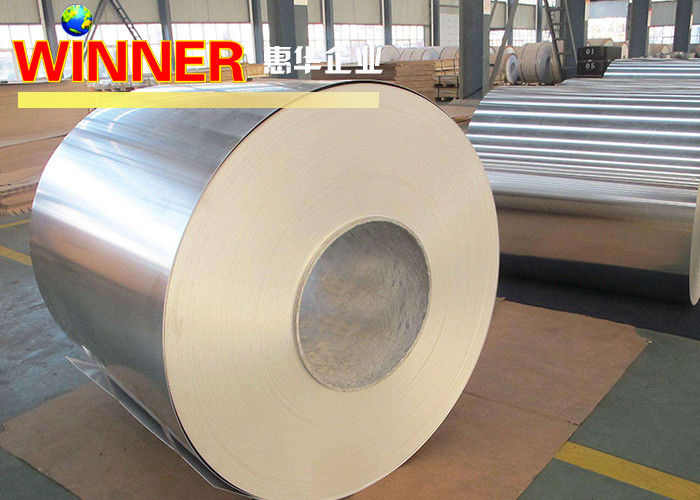

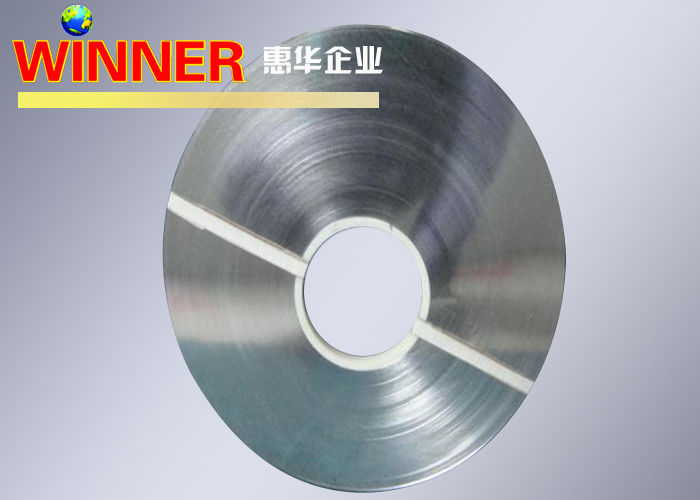

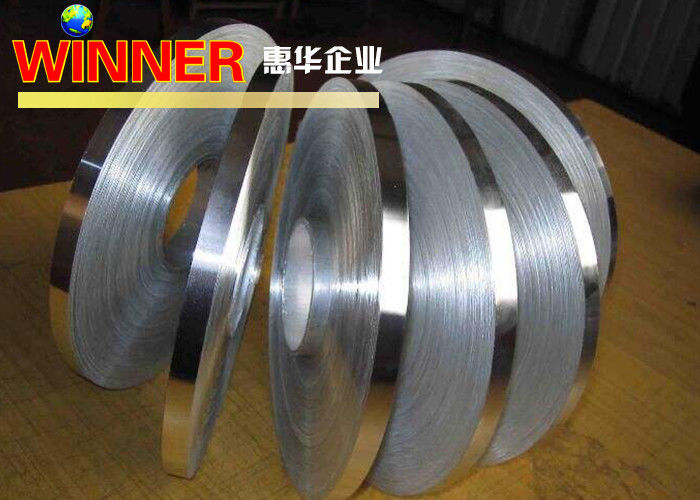

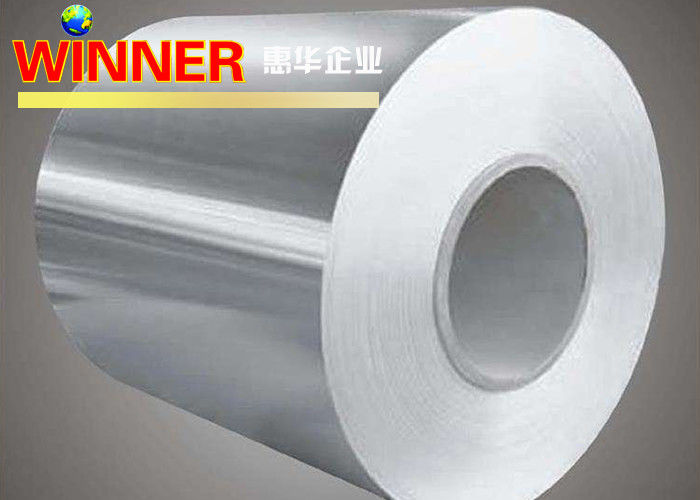

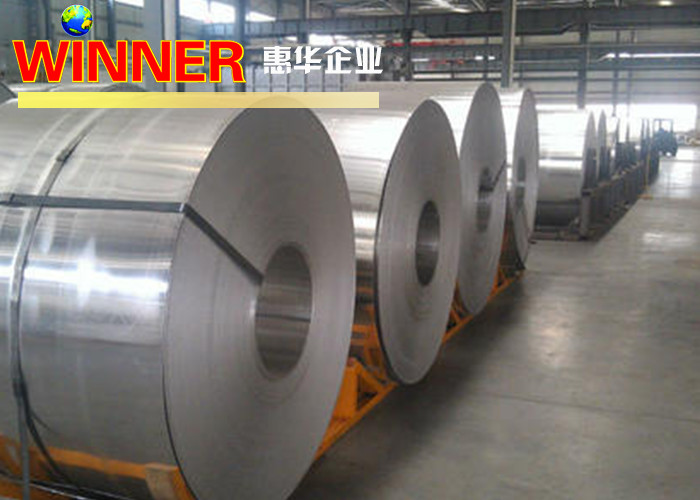

Easy Welding Ni Al Composite Strips , Aluminum Foil Alloy Good Processability Aluminium Strip 2mm
A clad material combines two or more metal strips by bonding them together. By bonding different combinations of metals, the advantages of the individual metals are combined into a composite that is tailored to your specific product needs and requirements.
When applying clad materials into batteries, high conductivity is one of the most significant advantages. Besides, these clad materials make welding easier, and are also useful for increasing the battery's performance (higher volume and smaller size) and improving productivity as well.
Al-Ni clad materials have good conductivity and processability. They can be directly welded to lithium-ion battery aluminum casings and terminals.
| Parameter table | |
| Product name | Aluminum metal strip / aluminum nickel composite strip |
| Material purity | Nine99.98% / Al-99.6% |
| Product specification | Thickness 0.05-0.4 tolerance ± 0.015, width 1.5-100 tolerance ± 0.10 |
| Supply status | MY2Y |
| Supply shape | Rolled, flaky and shaped stamping parts |
| 180 degree bending | M ≥ 7 times, Y2 ≥ 4 times, y ≥ 2 times |
| Bonding strength of nickel and aluminum | ≥4Kgf |
| purpose | For bottom connection of aluminum shell of lithium battery, anode conversion of polymer battery, special welding of solar cell, etc |
The raw material of aluminum strip is pure aluminum or aluminum alloy cast rolled roll, hot rolled roll, rolled by the cold rolling mill for different thickness, width of the sheet aluminum roll, and then according to the use, by the longitudinal shear longitudinal cut into different width of the aluminum strip.
The alloy grades of commonly used aluminum brands are 1050, 1060, 1070, 1100, 3003, 3004, 5005, 5052, etc. Common states are O state and H state.According to the alloy elements contained in aluminum strip, aluminum strip and aluminum plate are also divided into 8 series. But currently the most popular series are 1000,3000,5000
| Components of clad materials | Thickness ratio | Specification | Product Status |
| Al/Ni | Al : Ni 1 : 2 |
depend on customers' requirements | depend on customers' requirements |
Al-Ni clad materials are often welded to the aluminum casings and terminals, in order to make welding convenient.
1. With the solderability of nickel strip
2. Good processability
3. Conversion welding
4. Reduce the internal resistance of battery
Q: Are you trading or manufacturer ?
A: We are company,and we have our own factory
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
